Furnace Filter Direction: Which Way Should the Arrow Point?

A clear guide to finding airflow direction, installing a furnace filter correctly, and knowing when to ask for help.

A furnace filter is one of the few parts of a heating system most homeowners can handle without a service visit. The confusing part is not usually finding the replacement. It is standing at the slot with a cardboard frame in hand, trying to decide whether the little arrow should point up, down, left, or right.

The rule is simpler than the location. The arrow follows airflow. It points toward the furnace, air handler, or blower, never back toward the room where the return air began. Once you understand the short path air takes through the house, you can install the filter confidently whether it sits beside the furnace, behind a wall grille, or above your head in a ceiling return.

The quick answer: point the arrow toward the equipment

Look along the edge of the filter frame for the printed airflow arrow. Install the filter so the arrow points in the same direction air is moving: from the return duct toward the furnace or air handler. The filter guidance from Trane describes the same rule, including return filters in walls and ceilings. The arrow aims away from the return duct and toward the unit.

At a filter rack beside the furnace, that usually means the arrow points into the cabinet. In a wall return, it points into the wall. In a ceiling return, it points up into the ceiling. In a floor return, it points down into the floor. Do not treat “up” as the rule. A downflow or horizontal system may need a different direction. The airflow path is the rule that does not change.

There is a helpful way to remember it: room air goes in through the return grille, moves through the filter, then reaches the blower. The arrow follows that trip. If the arrow is facing your living room, hallway, or the open side of the return grille, it is likely pointing the wrong way.

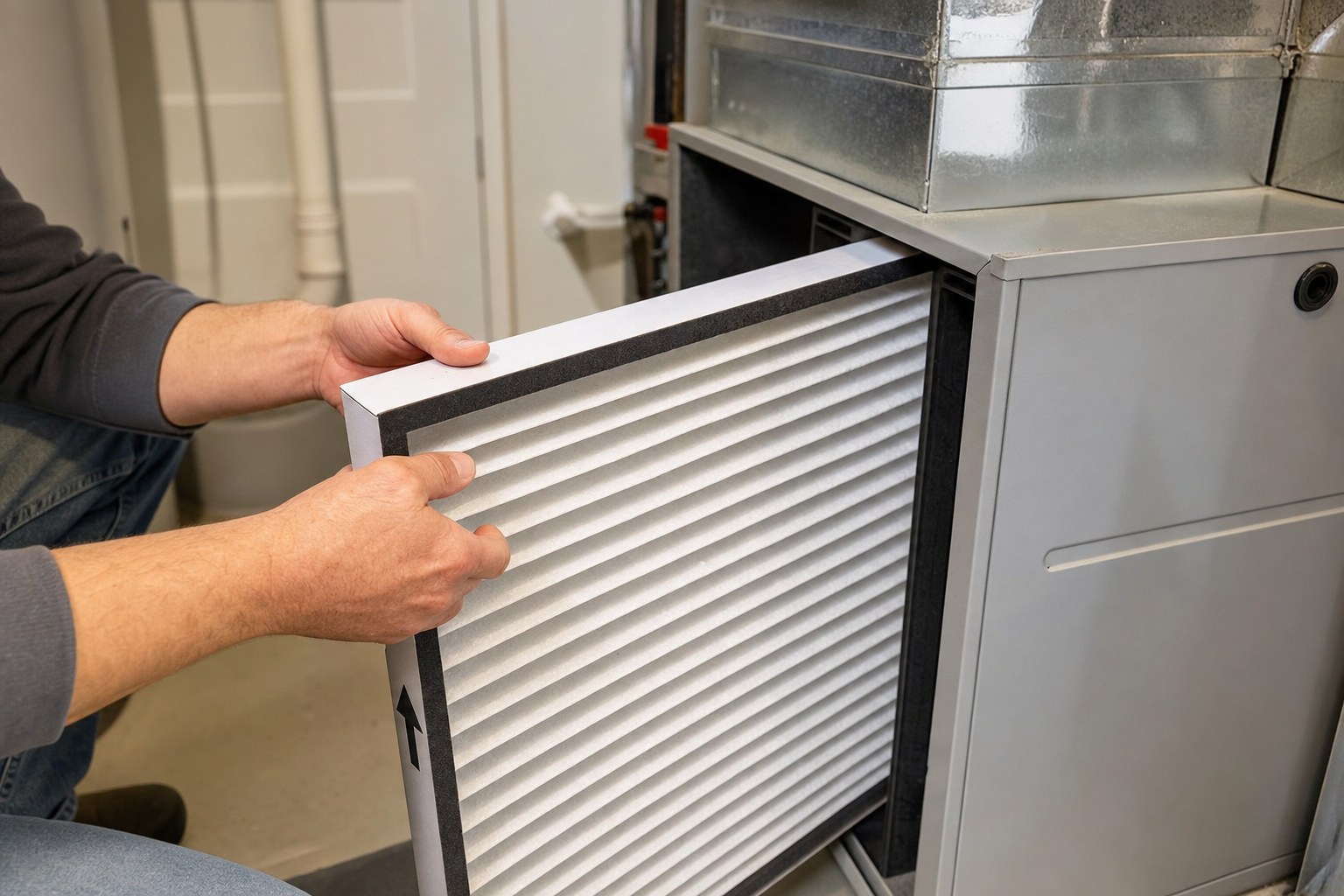

Homeowner sliding a new pleated furnace filter toward a return-air filter slot

Why the arrow matters

A filter does more than catch visible dust. It helps keep lint, dander, and debris from reaching parts of the heating and cooling system where buildup can affect airflow and service life. Filters are built to work with air moving through the media in a particular direction. The frame arrow tells you that intended direction.

A backwards filter may not create an immediate breakdown, so there is no need to panic if you notice one after the fact. Still, it should be corrected at the next safe opportunity. A filter can be less well supported in the wrong direction, and a bent, bowed, or overly dirty filter should be replaced rather than forced back into service. The goal is steady airflow and a snug, undamaged fit, not simply getting any filter into the slot.

A clogged filter can reduce airflow, contribute to overheating, increase energy use, and lead to earlier repairs. Those are the reasons it is worth checking one small piece of cardboard before assuming a furnace problem is bigger than it is. Filter care will not fix every heating issue, but it is a sensible first check when airflow has changed or a furnace sounds strained.

Find the return side before changing the filter

Most homes have supply registers and return grilles. Supply registers send conditioned air into rooms. They are often smaller and may be adjustable. Return grilles draw room air back to the equipment. They are often larger, may not have a directional damper, and are commonly found in a hallway, living area, ceiling, or central wall.

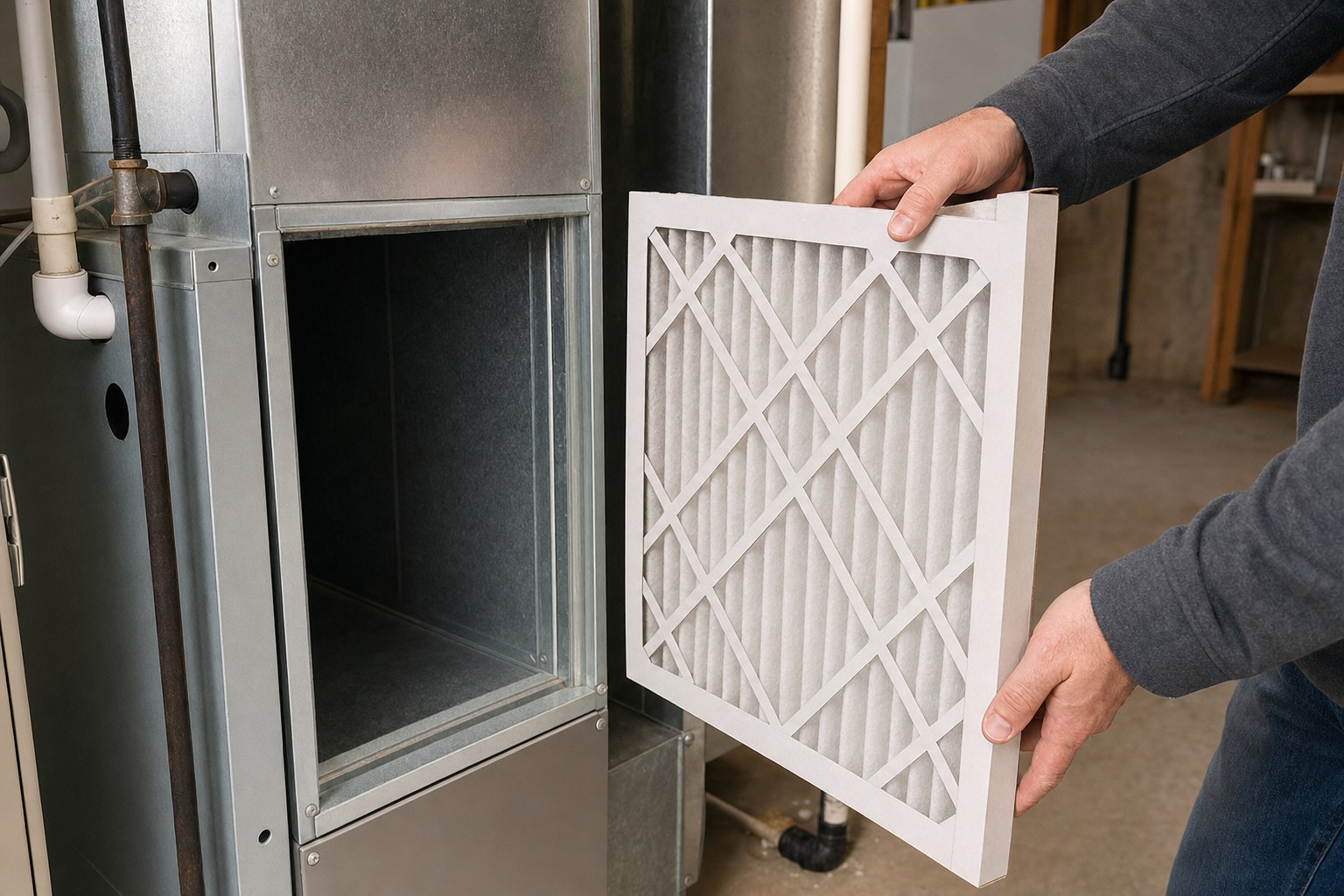

The filter belongs on the return side, before the blower. Depending on the equipment and home layout, it may be in a narrow rack beside the furnace, behind a removable return grille, or behind an access cover near the air handler. A filter is not always directly visible from the front of the furnace, and some homes have more than one system and more than one filter.

Before removing anything, take a clear photo of the existing filter’s size and arrow direction. That is useful reference material, although it is not proof that the old filter was installed correctly. If you can see a printed arrow on the equipment or filter rack, follow it. If you cannot locate the filter without removing a furnace panel, stop there and use the owner manual or ask for help. Homeowners do not need to open a gas appliance cabinet to replace a filter.

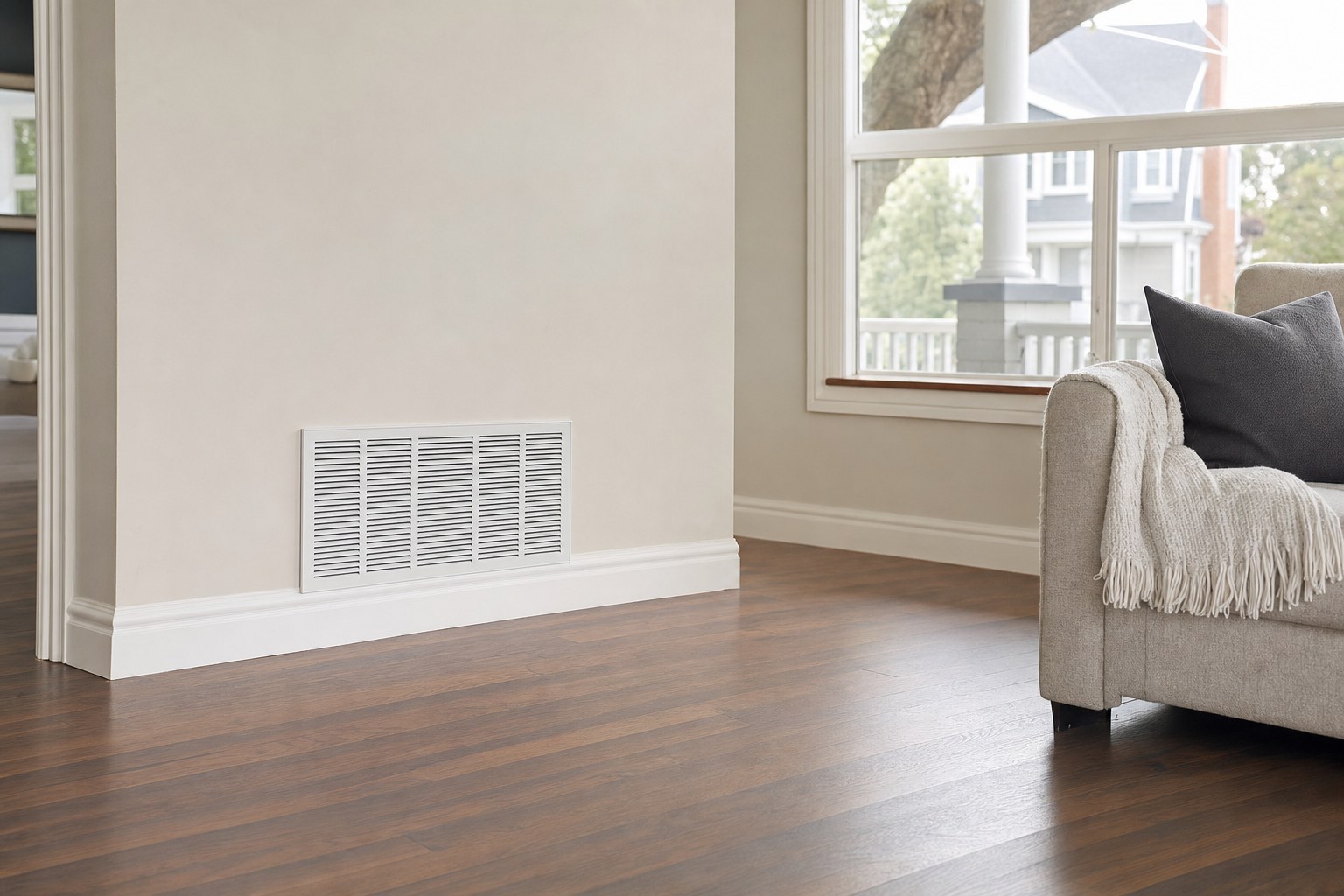

Unobstructed return-air grille in a bright living room

How to change a furnace filter safely

Start by setting the thermostat to Off. That keeps the blower from pulling while the filter opening is exposed. Gather the replacement filter, and make sure its actual size, thickness, and type match the equipment’s requirements. A filter that is too small can let unfiltered air pass around the edges. A filter that is too thick or restrictive can create its own airflow problem.

Turn the thermostat off and locate the accessible filter slot or return grille.
Slide out the old filter gently. Note the size printed on the frame and where its arrow was pointing.
Look for a direction arrow on the cabinet, rack, or replacement filter.
Install the new filter with its arrow pointing toward the furnace, air handler, or blower.
Close the cover or grille securely, then return the thermostat to its normal setting.

The process should not require tools, force, or moving gas lines, wiring, or panels. If the filter will not slide in easily, feels loose in every direction, or has to be folded or trimmed, pause. It is better to verify the correct size than to create a bypass gap or damage the filter frame.

Write the installation month on the frame with a marker if that helps your household remember the next check. The right replacement interval depends on the filter, the home, pets, allergies, renovation dust, and how much the system is running. Trane suggests a general replacement range of 30 to 90 days, with more frequent changes for some conditions. A monthly look is a simple habit, even when the filter does not need replacement every month.

What changes with an upflow, downflow, or horizontal furnace?

The equipment’s shape can change the direction of the arrow, but it does not change what the arrow means. An upflow furnace commonly draws air in at the bottom or side and sends it upward through the blower, so the filter arrow often points up or inward. A downflow furnace can draw air in at the top and move it down, so the arrow may point down. A horizontal unit may have the arrow pointing sideways toward the blower end.

If your filter is behind a return grille rather than next to the furnace, do not try to point the arrow physically at the furnace’s location in the basement or attic. Point it into the ductwork, following the route the air takes away from the room. The arrow is about the air’s path through that spot, not the compass direction of the equipment somewhere else in the home.

When the location is unusual, the equipment manual is the best model-specific source. A service technician can also label the direction during a maintenance visit, which makes future changes much less of a guessing game.

Choose the right filter, not simply the strongest one

Filter rating matters, but a higher rating is not automatically better for every system. A more restrictive filter can capture smaller particles, yet it can also make airflow harder if the furnace was not designed for it. Your equipment manual, installer guidance, or a qualified HVAC professional can help identify the appropriate size and rating for your home.

Do not stack filters, add a second filter where the system was not designed for one, or use a filter that does not fit snugly. A filter should sit flat in its rack with no big gaps around the edges. If you are uncertain about a size or suitable replacement, Kens can help with common filters and humidifier pads so you do not have to guess from a crowded shelf.

Clear airflow also depends on the rest of the return path. Keep large return grilles clear of furniture, rugs, curtains, and storage. Leave supply registers open unless a technician has given a specific reason to adjust them. A new filter is helpful, but it cannot correct a blocked return, duct problem, blower issue, or a system that is not heating normally.

When a filter change is not the whole answer

Replace the filter and arrange heating service if the furnace still has weak airflow, keeps shutting off, cannot maintain temperature, trips a breaker, or makes a new burning, grinding, or electrical sound. Do not remove access panels to chase an airflow problem. A filter is a safe homeowner task. Blower, wiring, ignition, gas, combustion, and safety controls are not.

If the furnace is running but air is not moving as it should, the furnace fan guide explains the safe first checks. If the furnace is repeatedly starting and stopping, see the short-cycling guide. A filter problem can be part of either pattern, but it should not be used to explain away a concern that continues after a fresh, correctly installed filter.

Leave the home and call 911 or the gas utility from outside if you smell gas, see smoke or soot, smell exhaust, or a carbon monoxide alarm sounds. Do not assume a filter change has anything to do with a gas or carbon monoxide warning. Those signs need an immediate safety response.

HVAC technician discussing routine furnace maintenance with a homeowner

How Kens can help with filter and airflow questions

Kens Heating and Air Conditioning helps homeowners around Bethel keep heating systems working reliably with practical maintenance, clear explanations, and service for all makes and models. During a visit, the team can check the filter setup, return-air path, blower operation, heating performance, and the other conditions that affect comfort. That makes it easier to separate a simple filter change from a problem that needs a closer look.

Seasonal maintenance is also a useful time to confirm the correct filter size and direction before winter gets demanding. Kens’ Comfort Club maintenance plans include seasonal tune-ups, priority service, and repair savings, which can help catch changes before they become an urgent no-heat call.

For help with the right filter or a furnace that still is not moving air normally, book a heating visit or contact Kens. Bring the old filter size, a photo of the slot if you have one, and a note about any comfort change. Those details make the next step much clearer.

Frequently asked questions

Which way should the arrow point on a furnace filter?+

The arrow should point in the direction air travels, toward the furnace, air handler, or blower. At a furnace slot, that usually means into the unit. At a wall, ceiling, or floor return grille, it points into the ductwork and away from the room.

What if I installed my furnace filter backwards?+

A backwards filter is worth correcting, but it is not usually an emergency. Turn the thermostat off, remove the filter, and reinstall it with the arrow pointing toward the equipment. If the filter is bent, dirty, or damaged, replace it with the correct size and type.

Does a furnace filter arrow point up or down?+

It depends on the direction of airflow, not on a universal up-or-down rule. An upflow furnace commonly has an upward arrow, a downflow furnace may have a downward arrow, and a horizontal system may have a sideways arrow. Follow the path toward the blower.

How often should I change my furnace filter?+

Check the filter monthly during heating and cooling season. Many homes need a replacement every one to three months, but pets, construction dust, allergies, and heavy system use can shorten that interval. Follow the equipment and filter manufacturer guidance for your particular filter.
