A furnace that starts, runs briefly, then shuts the burners off can be unsettling, especially when the blower keeps moving cool air. One possible reason is the furnace high-limit switch, a built-in safety control that responds when equipment temperature rises too far. The important word is possible. Those symptoms can also come from a thermostat setting, a dirty filter, a blower problem, a flame-sensing issue, or another control fault. The useful first step is not to guess at a part. It is to understand what the pattern means, make a few safe observations, and know when to stop and call for help.
For any gas odor, exhaust odor, smoke, soot, or carbon monoxide alarm, leave the home and call 911 or the gas utility from a safe location. Do not touch furnace controls, switches, or electrical devices on the way out. For a no-heat problem without those emergency signs, keep the checks simple and stay outside the furnace cabinet.
What the furnace limit switch is supposed to do
During a normal heating call, the furnace burners heat the heat exchanger before the blower distributes warm air through the home. A high-limit switch monitors the temperature in the furnace. If that temperature becomes unsafe, the switch interrupts burner operation and the blower may keep running to carry heat away. When the equipment cools, some designs can reset automatically, while other safety controls require professional attention.
That behavior is protective, not a nuisance to defeat. Trane explains the high-limit switch as an overheating safeguard that can shut off gas to the burners while the blower cools the furnace. A switch that opens can be doing exactly what it should because another problem is restricting airflow or creating excessive heat. Replacing or bypassing it without finding the cause can hide the very condition it is meant to flag.
It also helps to distinguish a high-limit switch from other furnace safety parts. A pressure switch checks draft and venting conditions. A flame sensor confirms the burner flame is present. A rollout switch responds to a serious burner-area heat condition. They all protect the system in different ways, and they can produce overlapping symptoms. That is why a blinking light or error code should be recorded for a technician, not interpreted from a generic internet chart.
Common furnace limit switch symptoms
Most homeowners do not need to identify the switch itself. The useful clues are what the furnace does before and after it stops heating. A burner shutdown paired with a continuing blower is one pattern worth noting. Another is a system that heats for a few minutes, goes quiet, then tries again before the house reaches the thermostat setting.
- Burners stop but the blower keeps running. The furnace may be trying to cool itself after an overheat condition. The air from registers can turn cool once the burners are off.
- Short, repeated heating cycles. If the furnace turns on and off several times without warming the house, it may be reaching a safety limit or experiencing another problem that needs diagnosis.
- The blower will not turn off. First check that the thermostat fan setting is on Auto, not On or Circulate. If the setting is right and the fan continues, a control, thermostat, wiring, or safety issue may be involved.
- No heat after a recent shutdown. A furnace that will not ignite after a safety event may be protecting itself, or it may have a separate power, ignition, condensate, or control issue.
- An error light on the furnace control board. Note the color and blink pattern from outside the cabinet and check the owner manual for your exact model. Do not remove panels or try to force a reset.
None of these signs proves that the switch has failed. Carrier likewise notes that a furnace may shut off its burners and keep the blower running when restricted airflow causes overheating. The condition can be related to the filter, blocked supply or return openings, blower performance, or other parts of the system. The symptom is valuable because it tells the service technician where to begin, not because it gives a safe do-it-yourself diagnosis.
Why a limit switch may open
Airflow is often the first place to look. Your furnace needs enough air moving across the heat exchanger to carry heat safely into the ducts. A filter loaded with dust, a return grille blocked by furniture, many closed supply registers, a dirty blower wheel, undersized ductwork, or a blower that is not moving enough air can all reduce that flow. Longer run times during a cold snap can make a marginal airflow problem more obvious.

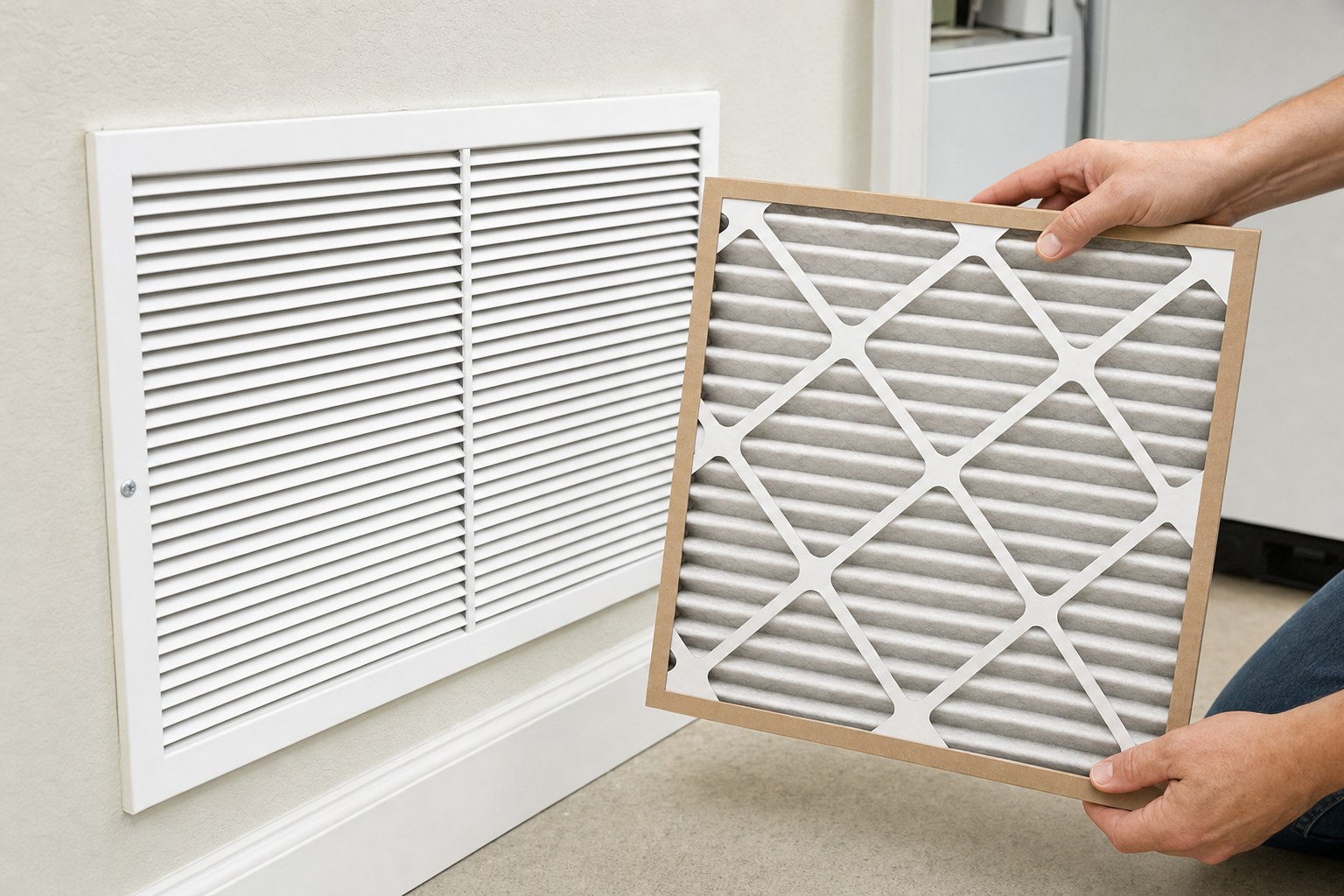

Start with the filter you can access without removing an equipment panel. If it is overdue, visibly packed with dust, or the wrong size, replace it with the correct type and direction for your equipment. The furnace filter direction guide can help you find the airflow arrow. Then make sure return grilles and supply vents are open and clear. Do not close rooms or registers to push more heat into one space. That can reduce airflow and make the underlying comfort problem worse.
Wear and electrical faults are another possibility. A limit switch can weaken or fail after years of heating cycles. The furnace may also have a problem with its blower, control board, thermostat, wiring, or a condition that is causing genuine overheating. A professional needs to separate those causes by checking operation, temperature rise, airflow, components, and safety controls together. Changing one part without those checks can lead to another shutdown and does not make the equipment safer.
Safe checks to make before scheduling service
These checks are meant to gather useful information, not to repair a gas appliance. If the furnace is extremely hot, making unfamiliar noises, cycling repeatedly, or not keeping the house safe and comfortable, turn the thermostat off and arrange service rather than letting it retry over and over.
- Confirm the thermostat is set to Heat and a few degrees above the room temperature. Set the fan to Auto unless the owner manual says otherwise.
- Check that the furnace service switch and breaker are on. Reset a tripped breaker once only if there is no gas odor, smoke, or water concern. A breaker that trips again needs service.
- Inspect and replace an accessible dirty filter with the correct size and airflow direction.
- Open and clear supply vents and return grilles throughout the home. Move furniture, rugs, boxes, and curtains away from them.
- Listen and watch from outside the cabinet. Note whether the burners start, whether the blower starts, how long the system runs, and whether the fan continues after heat stops.
- Take a photo of any thermostat message or visible status light, then use the model-specific owner manual. Do not open the furnace, touch wiring, clean sensors, or reset an internal safety switch.
A simple thermostat, power, filter, and airflow check is also a good starting point when a furnace will not start. Our furnace not turning on guide covers that wider symptom. If the furnace is making repeated clicking sounds, use the clicking but not turning on guide for safe observations, then schedule a diagnosis if the issue continues.
What not to do
Never bypass, tape down, jumper, adjust, or repeatedly reset a furnace safety switch. Do not remove the cabinet door, reach around the blower, or attempt to clean burners, wiring, or internal sensors unless you are a qualified technician following the exact manufacturer procedure. A furnace may restart after an improvised reset while the overheating or combustion problem remains. That is not a fix.
Do not keep raising the thermostat to force more heat, and do not run the furnace through repeated short cycles to see whether it will recover. Use only manufacturer-approved temporary heating equipment according to its instructions. The Consumer Product Safety Commission recommends carbon monoxide alarms on every level of the home and outside sleeping areas, with regular testing. An alarm is essential protection, but it never replaces a professional inspection of a furnace with warning signs.
When to call for furnace repair

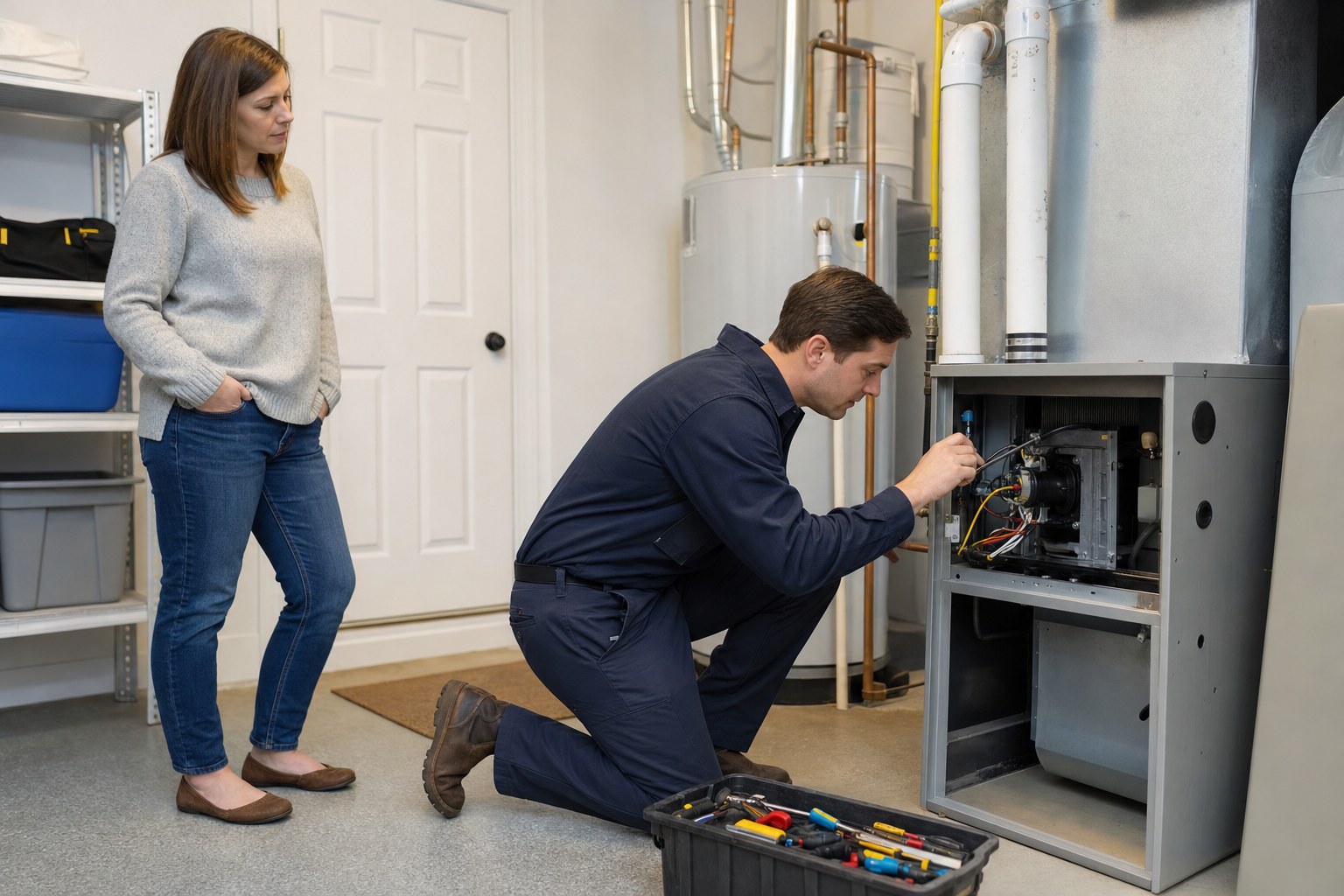

Arrange a prompt furnace repair visit when the burners shut down repeatedly, the blower runs continuously with the fan set to Auto, the furnace will not restart after the basic checks, the air turns cold during heat calls, or a status light points to a safety or limit condition. Let the technician know when the pattern began, what the thermostat was set to, whether you changed the filter, and whether the blower kept running after the heat stopped. Those details make the visit more efficient.
Kens Heating and Air Conditioning services all makes and models for homes and businesses within 30 miles of Bethel. The goal is to identify the cause behind the safety response, whether that is airflow, a worn component, or another furnace condition, then explain a practical repair path. A safety-control symptom does not automatically mean replacement. If the furnace is older and repair history, reliability, or efficiency makes a replacement comparison worthwhile, Kens can explain the options without pressure.
Once the immediate issue is resolved, routine maintenance can help catch airflow and operating changes before a cold-weather interruption. A Comfort Club maintenance plan includes seasonal tune-ups, priority service, and repair savings. Keeping the filter current, returns clear, and a yearly visit on the calendar gives the furnace the airflow and attention it needs to work as designed.
Quick next steps
- Leave immediately and call 911 or the gas utility from outside for gas odor, exhaust odor, smoke, soot, or a carbon monoxide alarm.
- For a non-emergency symptom, check the thermostat, accessible filter, open vents, clear returns, service switch, and breaker once.
- Do not bypass a limit switch, remove furnace panels, or keep resetting the system.
- Record the timing of the cycle and any visible status light for the technician.
- Book a heating visit if the furnace keeps shutting down, blows cool air, or cannot maintain a safe indoor temperature.
A furnace limit switch is there to protect the equipment and the home. Treating a repeat shutdown as useful warning information, rather than something to defeat, is the safest way to get reliable heat back. To arrange an inspection, book a heating visit or contact Kens.
Frequently asked questions
What does a furnace limit switch do?+
A furnace limit switch is a safety control that monitors temperature in the furnace. If the equipment gets too hot, it stops the burners and often keeps the blower running to cool the system. It is not a part to bypass, reset repeatedly, or replace without finding out why it opened.
Can a dirty filter make a furnace limit switch trip?+
Yes. A clogged filter can restrict airflow, allowing heat to build up inside the furnace and causing the high-limit safety control to open. A correct, clean filter is a safe homeowner check, but a repeated trip still needs professional diagnosis because several other airflow and equipment problems can cause it.
Why does my furnace blower keep running after the heat stops?+
A brief blower delay after a heating cycle can be normal. If the burners stop and the fan continues pushing cool air for an extended time, the furnace may be cooling itself after a safety shutdown, or it may have another thermostat, control, or blower issue. Check the thermostat fan setting once, then arrange service if the pattern continues.
What should I do if I smell gas or a carbon monoxide alarm sounds?+
Leave the home immediately and call 911 or your gas utility from a safe location. Do not use furnace controls, light a flame, use switches, or try to find the source inside. A carbon monoxide alarm or gas odor is not a troubleshooting situation.
